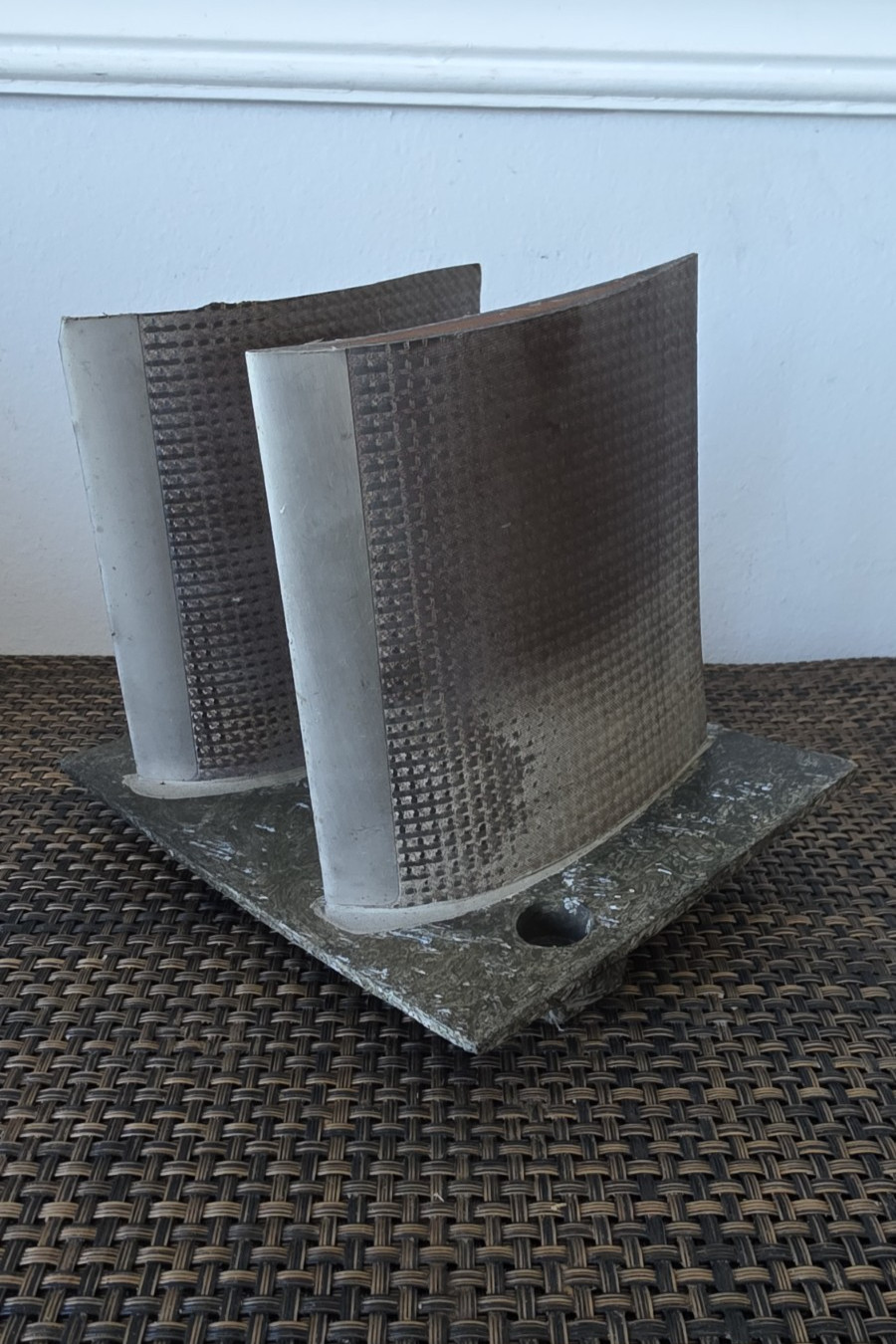

Jet Engine Composite Fan Exit Guide Vane Cutaway Display –Carbon Fiber /Titanium:
$199.00
***** Jet Engine Composite Fan Exit Guide Vane Cutaway Display – Carbon Fiber / Titanium *****
Item Specifics:
Type: Jet Engine Component / Engineering Cutaway Display
Material: Carbon Fiber Reinforced Polymer (CFRP), Titanium, Structural Core
Component: Fan Exit Guide Vane (FEGV) Doublet Section
Dimensions: Approx. 6" H x 6.3" W (Base)
Condition: Used (Retired from service / Professionally sectioned for display)
Description:
Rare Aerospace Engineering Display: Composite Jet Engine Stator Vane Cutaway
Up for sale is a captivating piece of modern aviation technology—a professionally sectioned Fan Exit Guide Vane (FEGV)
Doublet from a high-bypass commercial turbofan engine.
This part was strategically cut down to 6 inches in height, perfectly transforming a massive piece of aviation hardware into an extraordinary, desk-friendly engineering display.
Why This Piece is Special:
Unlike standard intact blades, this professional cutaway explicitly reveals the brilliant, multi-layered internal architecture used in modern aerospace manufacturing.
It is a fantastic educational tool, a conversation-starting desk trophy, or an industrial decor piece for any aviation enthusiast, engineer, or pilot.
Visible Structural Details:
The High-Tech Core:
The cut edge clearly shows the lightweight, high-strength structural core material that fills the center of the airfoil to eliminate dead weight.
Carbon Fiber Skin: You can see exactly how the high-strength, woven carbon fiber structural layers wrap around the core to manage massive aerodynamic forces.
Titanium Leading Edge: The bright metallic silver sheathing on the front edge shows how engineers seamlessly bond titanium to composites to protect the engine from rain erosion and bird strikes.
Molded Composite Base: Features the rugged, marbled mounting platform with factory bolt holes used to secure the assembly to the outer engine casing.
*** REF: EBB34
